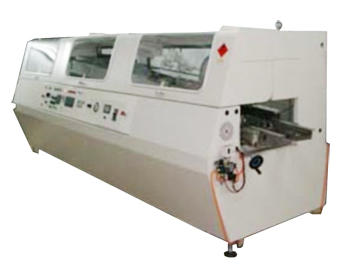

1800DH Cast - Iron Solder Pot for lead free wave soldering machine |
Designed to meet Lead-Free solder standards, the double wave soldering module consists of a seamless, acid-proof, stainless steel pot, equipped with internal elements, pump housing and highly stable motor. Closed loop P.I.D. controls keep a precise solder temperature. Gears and wheels built onto the solder pot make it easy to slide in and out for maintenance. |
|
-
Inlet Chain Conveyor
-
Hot Air Pre-heater
-
Double Wave
-
Casting Iron Solder Pot
-
Outlet Conveyor
-
Finger Conveyor
-
Control System
-
Finger Cleaner
|
|
|
Main
construction: lnlet Belt Conveyor, Foaming Fluxer, Pre-heater, Single Wave(C250-SW) or Daul
Wave Soldering(C250-DW) Bath, Finger Chain Conveyor, Control
System |
|
1. |
Adjust Handle of Finger width (pcb width) |
2. |
Spray Volume
Controller |
3. |
Emergency
Switch |
4. |
Weekly
Timer |
5. |
Handle of Solder Pot Roll
IN/Out |
6. |
Adjust Handle of Rail Angle |
7. |
Touch Pannel
Controller |
8. |
Soder Pot Wave
Controller |
9. |
Conveyor Speed
Controller |
10. |
Exhaust Pipe for Spray
Fluxer |
11. |
Exhaust Connector for Spray
Fluxer |
12. |
Exhaust Connector for Solder
Pot |
|
|
C250 Series wave solder machine is available with dual waves for mixed technology
(through-hole + SMT) processing or with a single wave for through-hole only.
Stand is included. It has everything you need to get started with lead-free
solders: high-temp finger conveyor, foam fluxer, 16.5" of preheating power,
high-temp solder pot, built-in controls, and stand.
An
upgrade to spray fluxer and touch-screen computer control is also available.
|
Finger conveyor eliminates the expense and time cost of using
pallets and will not wear out from the high temperatures required for lead-free
solders. Heating coils and cast, high-temperature solder pot also visible.
|
|
A rear panel drops open, allowing the supporting legs, shown
folded for storage (L), to deploy, allowing the panel to open for convenient and
easy access to the high-temperature cast solder pot.
|
|
The upgraded model of the 250C includes a spray flux unit (shown
here with its vent) in addition to the foam fluxer, and a PC with touch-screen
controls.
|
|
The upgraded 250C, with door open, showing the optional
touch-screen computer controller (right). Below the touch-screen are the
conveyor speed adjuster and the solder pot wave
adjuster.
|
|
Turning the removable handle (L) manually controls the position
of the solder pot once the rear door is opened, allowing easy access for
cleaning and maintenance.
|
|
The finger conveyor (R, inlet with the adjust handle below),
accepts differing board widths. It can be easily raised or lowered by means of
the manual wheel under the rail (L) at the other
end.
|
|
Spec. |
Model: 1800DH |
Power Requirement |
220V / 380V / 415V 3Ø, 50/60Hz |
Power Consumption |
32 KW |
Air requirement |
5kg/cm2 |
Conveyor angle |
2~6° |
Conveyor speed (50/60Hz) |
Max 2M/min, 2.5M/min |
PC board size |
35~350 mm |
Fluxing coating method |
drum spray fluxer |
Pre-heater length/zone |
1800 mm / 4 zone |
Pre-heater consumption |
4.5 KW x 4 |
Pre-heater motor |
37 W x 4 |
Solder pot max. work temp. |
300°C |
Solder capacity |
300 kg |
Solder pot consumption |
13.5 KW |
Soldering pot motor |
90W x 2 |
Solder wave height |
max. 10mm |
Conveyor motor |
90 W |
Finger cleaner motor |
35 W |
Outline dimension (L x W x H) |
4250 x 1300 x 1500 mm |
Net Weight |
970 Kg |
|
Approval by ASAHI, a famous Japanese Brand & Japan Market.
As one of partner of ASAHI, we deliver a high quality wave soldering machine to Japan Market. |
Designed to meet Lead-Free solder standards, the double wave soldering module consists of a seamless, acid-proof, stainless steel pot, equipped with internal elements, pump housing and highly stable motor. Closed loop P.I.D. controls keep a precise solder temperature. Gears and wheels built onto the solder pot make it easy to slide in and out for maintenance. |
|
|
Lead-free soldering does have one glaring disadvantage. The extremely high processing temperatures can wreak havoc on wave solder equipment. The possibility of corrosion or rusting of vital parts can cause unforeseen production downtime while users await expensive replacements. What's worse, |
overheating can force the premature retirement of wave solder machines long before their normal life expectancy. SOLBOT Lead free soldering machine is among the first dual wave solder machines designed from a clean sheet of paper specifically for the lead-free age. No other system offers its built-in armor against high heat. For example, the solder pots in most machines are made of titanium, an expensive metal that's highly susceptible to corrosion once heat seeps into seams. This is why ASAHI, Japan's equivalent of Underwriters Laboratories, will not recognize titanium in lead-free soldering environments. |
